ALPS Electric co., LTD.
Tact Switch
SKQ
W
Products Line
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
SKQWLA
0.98N {100gf}
0.25mm
50mA
12V DC
100mΩ max.
Black

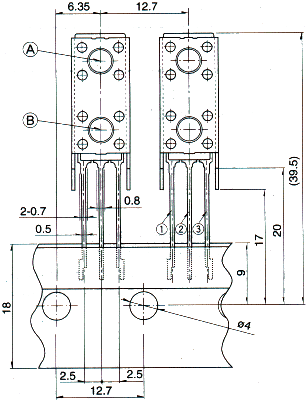

Dimensions Unit : mm
Circuit diagram
Printed circuit board land dimensions
(When viewed from the switch mounting face)
It is suggested to use a P.C. Board of 1.6mm thick.
Tact Switch
