Tact Switch
SKHC-
SKQC
Products Line
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
Variety
SKQCAA
0.98N {100gf}
0.25mm
50mA
12V DC
500mΩ max.
Black
Stem height h=4.3mm
SKQCAB
1.568N {160gf}
Dark gray
SKQCAC
2.548N {260gf}
Red
SKQCAD
0.98N {100gf}
Black
Stem height h=5mm
SKQCAE
1.568N {160gf}
Dark gray
SKQCAF
2.548N {260gf}
Red

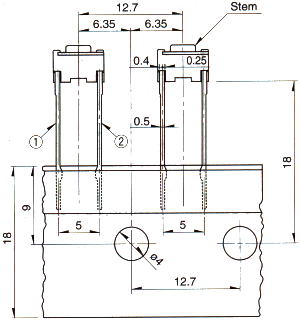

Dimensions Unit : mm
Circuit diagram
Printed circuit board land dimensions
(When viewed from the switch mounting face)
It is suggested to use a P.C.Board of 1.6mm thick.
Tact Switch
