ALPS Electric co., LTD.
Tact Switch
SK
HV

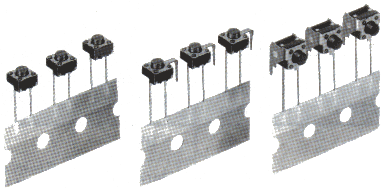

Products Line
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
Variety
SKHVBA
0.98N {100gf}
0.25mm
50mA
12V DC
100m§Ù max.
Black
Stem height h=4.3mm
SKHVBB
1.568N {160gf}
Dark gray
SKHVBC
2.548N {260gf}
Red
SKHVBD
0.98N {100gf}
Black
Stem height h=5mm
SKHVBE
1.568N {160gf}
Dark gray
SKHVBF
2.548N {260gf}
Red
SKHVCE
5.096N {520gf}
Yellow
SKHVBK
0.98N {100gf}
Black
Stem height h=7mm
SKHVBL
1.568N {160gf}
Dark gray
SKHVBM
2.548N {260gf}
Red
SKHVBG
0.98N {100gf}
Black
Stem height h=9.5mm
¡¡
SKHVBH
1.568N {160gf}
Dark gray
SKHVBJ
2.548N {260gf}
Red
Horizontal type
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
Variety
SKHVLH
0.98N {100gf}
0.25mm
50mA
12V DC
100m§Ù max.
Black
Stem height h=4.3mm
SKHVLJ
1.568N {160gf}
Dark gray
SKHVLK
2.548N {260gf}
¡¡
Red
With ground terminal type
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
Variety
SKHVPA
0.98N {100gf}
0.25mm
50mA
12V DC
100m§Ù max.
Black
Stem height h=4.3mm
SKHVPB
1.568N {160gf}
Dark gray
SKHVPC
2.548N {260gf}
Red
SKHVPD
0.98N {100gf}
Black
Stem height h=5mm
SKHVPE
1.568N {160gf}
Dark gray
SKHVPF
2.548N {260gf}
Red
SKHVPK
0.98N {100gf}
Black
Stem height h=7mm
SKHVPL
1.568N {160gf}
Dark gray
SKHVPM
2.548N {260gf}
Red
SKHVPG
0.98N {100gf}
Black
Stem height h=9.5mm
SKHVPH
1.568N {160gf}
Dark gray
SKHVPJ
2.548N {260gf}
Red
Dimensions Unit : mm

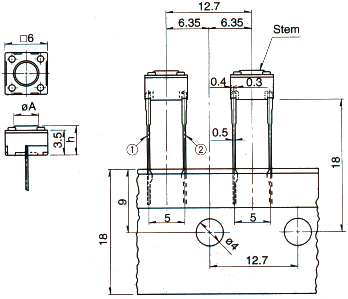

Vertical type
Circuit diagram
Printed circuit board land dimensions
(When viewed from the
switch mounting face)
It is suggested to use a P.C.Board of 1.6mm thick.

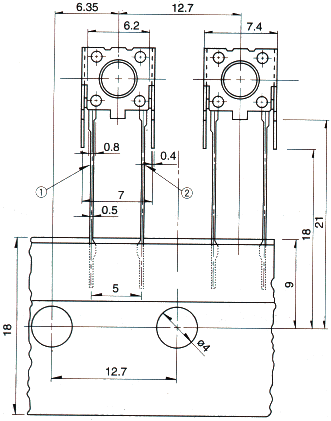

Horizontal type
Circuit diagram
Printed circuit board land dimensions
(When viewed from the
switch mounting face)
It is suggested to use a P.C.Board of 1.6mm thick.

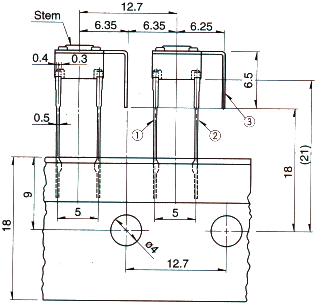

With ground terminal type
Circuit diagram
Printed circuit board land dimensions
(When viewed from the
switch mounting face)
It is suggested to use a P.C.Board of 1.6mm thick.
Tact Switch
