ALPS Electric co., LTD.
Tact Switch
SKQ
H

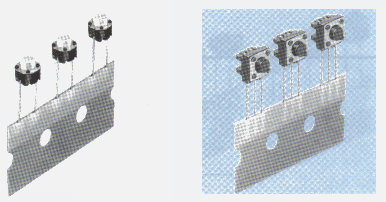

Products Line
Vertical Type
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
Variety
SKQNAA
0.98N {100gf}
0.25mm
50mA
12V DC
500mΩ max.
Black
Stem height h=4.3mm
SKQNAB
1.568N {160gf}
White
SKQNAC
2.548N {260gf}
Gray
SKQNAD
0.98N {100gf}
Black
Stem height h=5mm
SKQNAE
1.568N {160gf}
White
SKQNAF
2.548N {260gf}
Gray
SKQNAH
0.98N {100gf}
Black
Stem height h=7mm
SKQNAJ
1.568N {160gf}
White
SKQNAK
2.548N {260gf}
Gray
SKQNAL
0.98N {100gf}
Black
Stem height h=9.5mm
SKQNAM
1.568N {160gf}
White
SKQNAN
2.548N {260gf}
Gray
Horizontal type
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
SKQNLA
0.98N {100gf}
0.25mm
50mA
12V DC
500mΩ max.
Black
SKQNLB
1.568N {160gf}
Dark gray
Dimensions Unit : mm

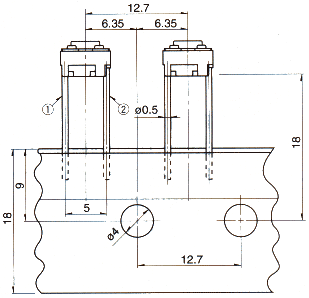

Vertical type
Circuit diagram
Printed circuit board land dimensions
(When viewed from the
switch mounting face)

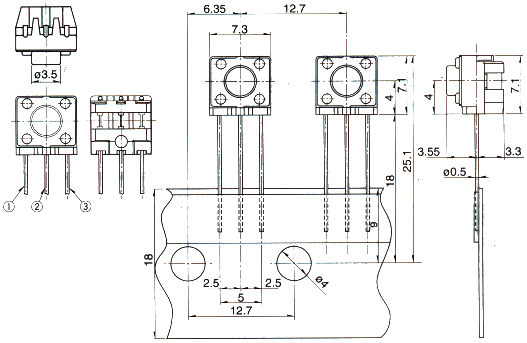

Horizontal type
Circuit diagram
Printed circuit board land dimensions
(When viewed from the
switch mounting face)
Tact Switch
