| SKQA |
 |
| Products
Line |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Variety |
| SKQAAA |
1st
0.98N {90gf}
2nd 3.92N {400gf} |
1st 0.45mm
All 0.75mm |
50mA
12V DC |
 |
500mΩ
max. |
Without stem
type |
| SKQAAC |
1st
0.98N {100gf}
2nd 3.43N {350gf} |
1st 0.4mm
All 0.65mm |
With stem
type |
|
| Dimensions
Unit : mm |

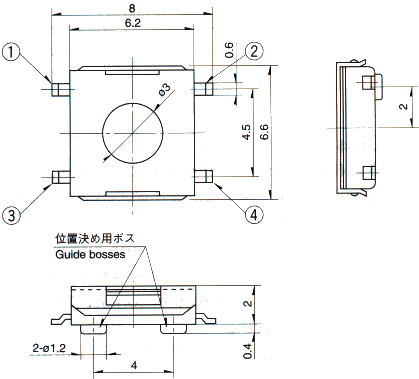

| Without stem
type Unit :mm |
 |

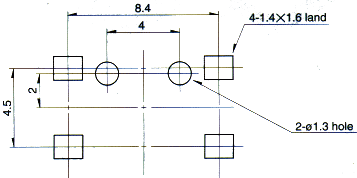

| Printed circuit board
mounting hole and land dimensions Unit
:mm |
 |

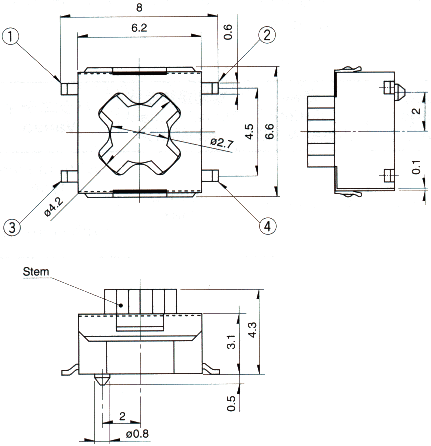

| With stem
type
Unit :mm |
 |
Printed circuit board
mounting hole and land dimensions
(When viewed from switch mounting
face)
Unit :mm |
 |
| Common
specifications |

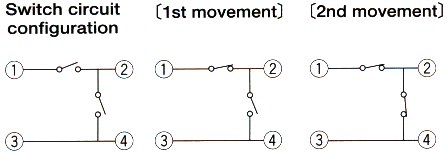

| circuit arrangement |
 |
Tact Switch
