| SKQH |
 |
| Products
Line |
| With two LED type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Variety |
| SKQHFA |
1.568N
{160gf} |
0.25mm |
50mA
12V DC |
 ¡¡ |
500m§Ù
max. |
Green-Red |
| SKQHFF |
2.548N
{220gf} |
 ¡¡ |
| SKQHFB |
1.568N
{160gf} |
|
Green-Soft
orange |
| SKQHFG |
2.548N
{220gf} |
|
| SKQHFC |
1.568N
{160gf} |
|
Green-Green |
| SKQHFH |
2.548N
{220gf} |
|
| SKQHFD |
1.568N
{160gf} |
|
Red-Red |
| SKQHFJ |
2.548N
{220gf} |
|
| SKQHFE |
1.568N
{160gf} |
|
Soft
orange-Soft orange |
| SKQHFK |
2.548N
{220gf} |
|
|
|
With only one LED type
|
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Variety |
| SKQHFR |
1.568N
{160gf} |
0.25mm |
50mA
12V DC |
|
500m§Ù
max. |
Green |
| SKQHFS |
Red |
| SKQHFT |
Soft
orange |
| SKQHFU |
2.548N
{220gf} |
|
Green |
| SKQHFV |
Red |
| SKQHFW |
Soft
orange |
|

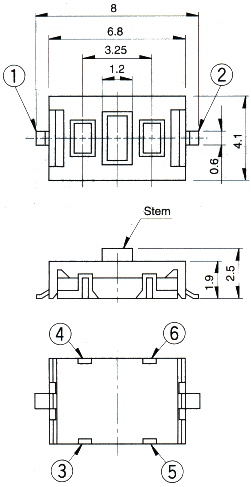

| Dimensions
Unit : mm |
 |
 |
Circuit diagram
Printed circuit board land dimensions
(When viewed from the
switch mounting face) |
 |
Tact Switch
