ALPS Electric co., LTD.
¡¡

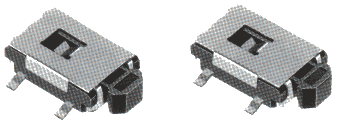

Tact Switch

SKQL
Products Line
Model Operation force Travel Ratings
(max.)		 Lifetime
(5mA 5V DC)		 Initial contact resistance Variety
SKQLLA 1.568N {160gf} 0.3mm 50mA
12V DC		 500m§Ù max. With boss
SKQLLC 2.156N {220gf}
SKQLLB 1.568N {160gf} Without boss
SKQLLD 2.156N {220gf}

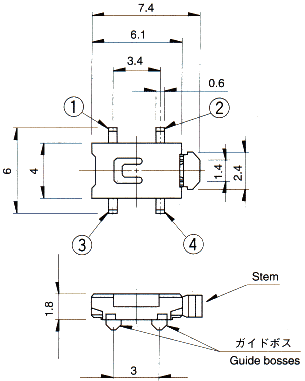

Dimensions                Unit : mm
Circuit diagram

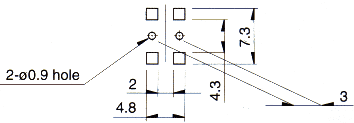

Printed circuit board land dimensions
(When viewed from the switch mounting face)
