ALPS Electric co., LTD.

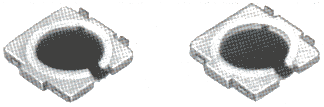

Tact Switch
SKQ
R
Products Line
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
SKQRAA
1.568N {160gf}
0.2mm
50mA
12V DC
100mΩ max.
SKQRAC
2.548N {260gf}

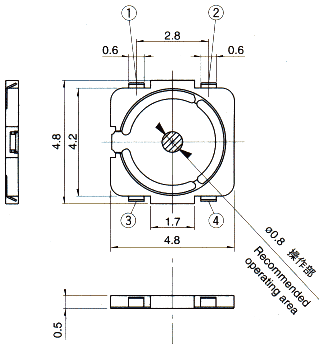

Dimensions Unit : mm
Circuit diagram
Printed circuit board land dimensions
(When viewed from the switch mounting face)
Tact Switch
