ALPS Electric co., LTD.

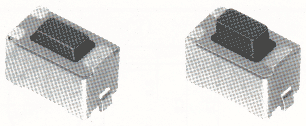

Tact Switch
SKQM
Products Line
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Variety
SKQMAG
0.98N {100gf}
0.25mm
50mA
12V DC
500mΩ max.
Stem height
h=2.5mm
SKQMAH
1.568N {160gf}
SKQMAJ
2.548N {260gf}
SKQMAK
0.98N {100gf}
Stem height
h=5mm
SKQMAL
1.568N {160gf}
SKQMAM
2.548N {260gf}

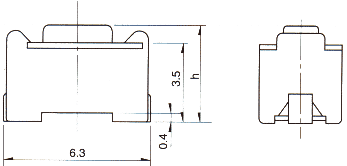

Dimensions Unit : mm
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face)
Tact Switch
