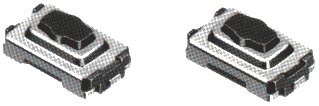

| SKQY |
 |
| Products
Line |
| Vertical type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| SKQYAA |
1.568N
{160gf} |
0.25mm |
50mA
12V DC |
 |
500m§Ù
max. |
Brown |
Stem
height
h=2.5mm |
| SKQYAB |
0.98N
{100gf} |
| SKQYAC |
2.548N
{260gf} |
|
|
With ground terminal type
|
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| SKQYPA |
1.568N
{160gf} |
0.25mm |
50mA
12V DC |
|
100m§Ù
max. |
Brown |
Stem
height
h=2.5mm |
| SKQYPB |
2.548N
{260gf} |
Green |
| SKQYPC |
0.98N
{100gf} |
¡¡ |
|
| Dimensions
Unit : mm |
  |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
 |
Tact Switch
