| SKQD |
 |
| Products
Line |
| Vertical type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| SKQDAA |
1.568N
{160gf} |
0.25mm |
50mA
12V DC |
 |
500mΩ
max. |
Brown |
Stem
height
h=2.5mm |
| SKQDAC |
0.98N
{100gf} |
Blue |
|
|
With ground terminal type
|
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| SKQDPA |
1.568N
{160gf} |
0.25mm |
50mA
12V DC |
|
100mΩ
max. |
Brown |
Stem
height
h=2.5mm |
| SKQDPC |
0.98N
{100gf} |
Green |
|

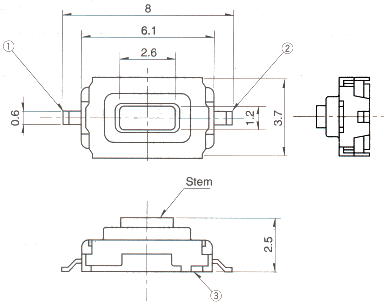

| Dimensions |
 |
|
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
 |
Tact Switch
