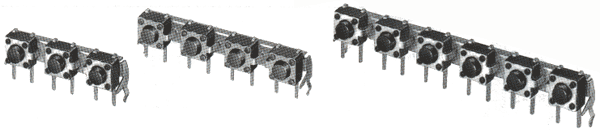

| KUHHP |
 |
| Products
Line |
| 3-ganged type |
|
|
|
4-ganged type
|
| Model |
Previous
model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| KUHHP40010 |
KUHHPA905A |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
 |
100mΩ
max. |
Black |
Stem
height
h=3.85mm |
| KUHHP40020 |
KUHHPA906A |
1.568N
{160gf} |
 |
Dark gray |
| KUHHP40030 |
KUHHPA907A |
0.98N
{100gf} |
|
Black |
Stem
height
h=8.35mm |
| KUHHP40040 |
KUHHPA908A |
1.568N
{160gf} |
|
Dark gray |
|
|
6-ganged type
|
| Model |
Previous
model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| KUHHP60010 |
KUHHPA909A |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
|
100mΩ
max. |
Black |
Stem
height
h=3.85mm |
| KUHHP60020 |
KUHHPA910 |
1.568N
{160gf} |
|
Dark gray |
| KUHHP60030 |
KUHHPA911A |
0.98N
{100gf} |
|
Black |
Stem
height
h=8.35mm |
| KUHHP60040 |
KUHHPA912A |
1.568N
{160gf} |
|
Dark gray |
|

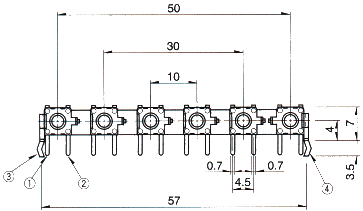

| Dimensions
Unit : mm |
| 3-ganged type |
 |
 |
 |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
| 4-ganged type
|
 |
 |
 |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
| 6-ganged type
|
 |
 |
 |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
Tact Switch
