ALPS Electric co., LTD.
Tact Switch

SKQV
Products Line
Vertical type
Model Operation force Travel Ratings
(max.)		 Lifetime
(5mA 5V DC)		 Initial contact resistance Stem color
SKQVLC 0.98N {100gf} 0.25mm 50mA
12V DC		 100m§Ù max. Black
SKQVLD 1.568N {160gf} Dark gray

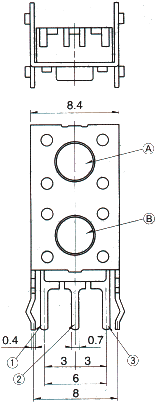

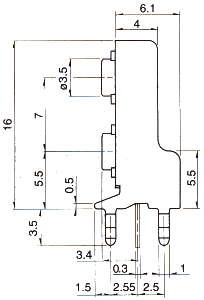

Dimensions         Unit : mm

Circuit diagram

Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face)
It is suggested to use a P.C.Board of 1.6mm thick.

¡¡
