ALPS Electric co., LTD.
Tact Switch
SKH
T
Products Line
Vertical type
Model
Operation force
Travel
Ratings
(max.)
Lifetime
(5mA 5V DC)
Initial contact resistance
Stem color
Variety
SKH
TLA
0.98N {100gf}
0.25mm
50mA
12V DC
100m§Ù max.
Black
§¤=3.85
SKH
TLB
1.568N {160gf}
Dark gray
SKH
TLC
2.548N {260gf}
Red
SKH
TLD
0.98N {100gf}
Black
§¤=8.35mm
SKH
TLE
1.568N {160gf}
Dark gray
SKH
TLF
2.548N {260gf}
Red
SKH
TLG
0.98N {100gf}
Black
§¤=15.85
SKH
TLH
1.568N {160gf}
Dark gray
SKH
TLJ
2.548N {260gf}
Red

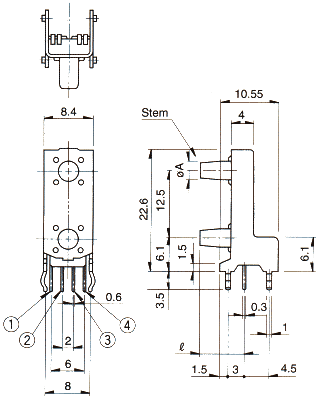

Dimensions Unit : mm
Common Specifications
Circuit diagram Unit : mm
Upper example
Lower example
Printed circuit board mounting hole dimensions Unit : mm
It is suggested to use a P.C.Board of 1.6mm thick.
¡¡
Tact Switch
It is suggested to use a P.C.Board of 1.6mm thick.
