| SKHF |
 |
| Products
Line |
| Without LED type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Variety |
| SKHFAA |
1st
0.882N {90gf}
2nd 2.744N {280gf} |
1st
0.7mm Over-all stroke 1.0mm |
20mA
12V DC |
 |
100mΩ
max. |
Gray |
Joint
stem type |
| SKHFAC |
1st
0.882N {90gf}
2nd 5.39N {550gf} |
 |
Blue |
| SKHFAB |
1st
0.882N {90gf}
2nd 2.744N {280gf} |
　 |
Gray |
Flat
stem type |
| SKHFAD |
1st
0.882N {90gf}
2nd 5.39N {550gf} |
　 |
Blue |
|
| Dimensions |

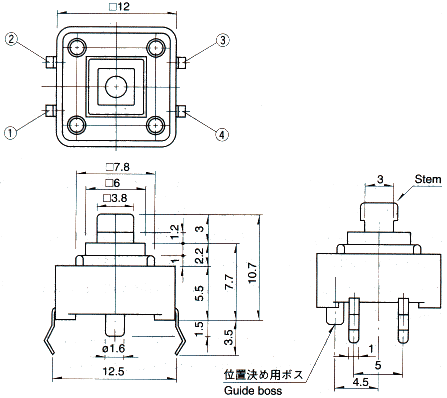

| Joint stem
type Unit
: mm |
 |

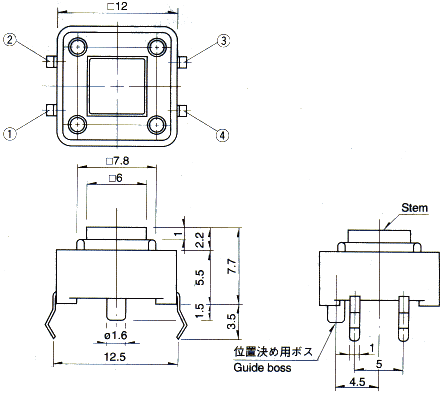

| Flat stem
type Unit
: mm |
 |
| Common
Specifications
Unit : mm |
| Circuit
arrangement
Unit : mm |
| Switch circuit
configuration |
[1st movement] |
[2nd movement] |
 |
 |
 |

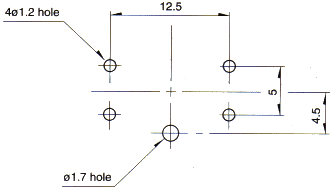

| Printed circuit
board mounting hole
dimensions
Unit : mm |
It is suggested to use a P.C.Board of 1.6mm thick. |
Tact Switch
