ALPS Electric co., LTD.
Tact Switch

SKHE

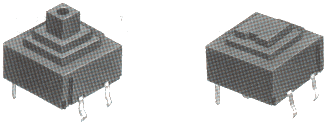

Products Line
Without LED type
Model Operation force Travel Ratings
(max.)		 Lifetime
(5mA 5V DC)		 Initial contact resistance Stem color Case color Variety
SKHEAA 0.98N {100gf} 0.6mm 20mA
12V DC		 100m§Ù
max.		 Black Black Joint stem type
SKHEAB Flat stem type
Dimensions

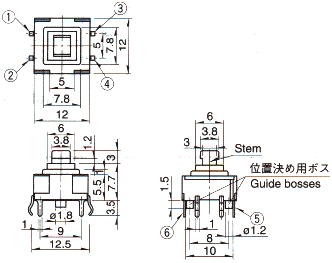

Joint stem type       Unit : mm

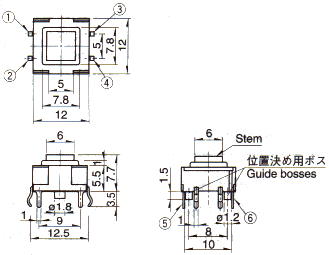

Flat stem type          Unit : mm
Common Specifications              Unit : mm

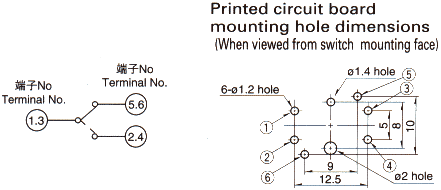

Circuit diagram

It is suggested to use a P.C.Board of 1.6mm thick.

¡¡
