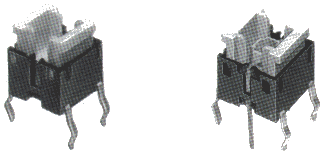

| SKHQ |
 |
| Products
Line |
| Without LED type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
| SKHQAB |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
 |
100m§Ù
max. |
White |
| SKHQAC |
1.568N
{160gf} |
Light
gray |
|
|
With LED type
|
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
LED
color |
| SKHQFA |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
|
500m§Ù
max. |
White |
Red |
| SKHQFB |
Pure
green |
| SKHQFC |
Amber |
| SKHQFD |
Orange |
| SKHQFE |
Green |
| SKHQFF |
1.568N
{160gf} |
Light
gray |
Red |
| SKHQFG |
Pure
green |
| SKHQFH |
Amber |
| SKHQFM |
Green |
| SKHQFN |
Orange |
|
| Dimensions |

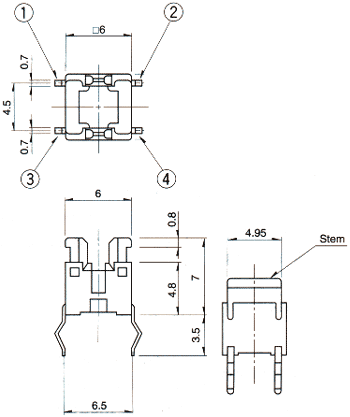

| Without LED
type Unit
: mm |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |

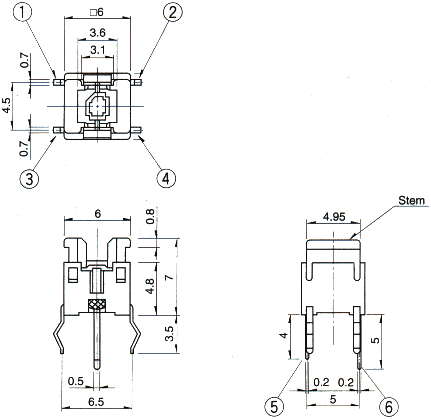

| With LED
type Unit
: mm |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
Tact Switch
