| SKHJ |
 |
| Products
Line |
| Without LED type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Frame
color |
| SKHJAA |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
 |
100m§Ù
max. |
White |
Black |
| SKHJAB |
1.568N
{160gf} |
| Gray |
 |
| SKHJAC |
2.548N
{260gf} |
Brown |
 ¡¡ |
| Green |
| SKHJAE |
3.528N
{360gf} |
|
|
With LED type
|
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Frame
color |
LED
color |
| SKHJFA |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
|
100m§Ù
max. |
White |
Black |
Red |
| SKHJFB |
| Pure
green |
| SKHJFC |
Amber |
| SKHJFG |
Orange |
| SKHJFH |
Green |
| SKHJFD |
1.568N
{160gf} |
|
Gray |
Red |
| SKHJFE |
Pure
green |
| SKHJFF |
Amber |
| SKHJGR |
Green |
| SKHJGS |
Orange |
| SKHJGE |
2.548N
{260gf} |
¡¡ |
Brown |
Red |
| SKHJGF |
Pure
Green |
| SKHJGG |
Amber |
| SKHJTA |
3.528N
{360gf} |
Green |
Pure
green |
|
| Dimensions |

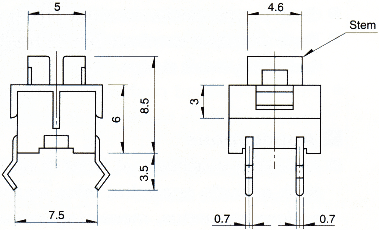

| Without LED
type Unit
: mm |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
 |

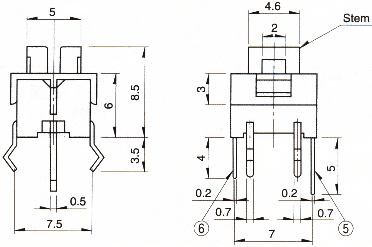

| With LED
type Unit
: mm |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
 |
Tact Switch
