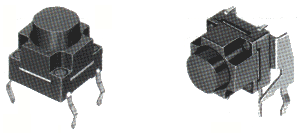

| SKQP |
 |
| Products
Line |
| Vertical type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
(OP)
ON-
Stroke |
(PT)
Pre-
Stroke |
(OT)
Over-
Stroke |
(FT)
Full-
Stroke |
| SKQPAA |
0.588N
{60gf} |
0.5mm |
0.3mm
min. |
0.25mm
min. |
1mm |
50mA
12V DC |
 |
500m§Ù
max. |
|
| Horizontal type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
(OP)
ON-
Stroke |
(PT)
Pre-
Stroke |
(OT)
Over-
Stroke |
(FT)
Full-
Stroke |
| SKQPLA |
0.588N
{60gf} |
0.5mm |
0.3mm
min. |
0.25mm
min. |
1mm |
50mA
12V DC |
|
500m§Ù
max. |
|
| Dimensions |

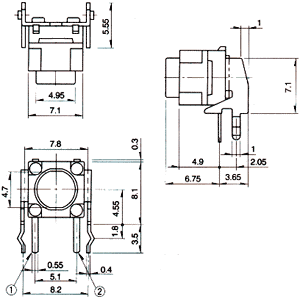

| Vertical type |
 |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |

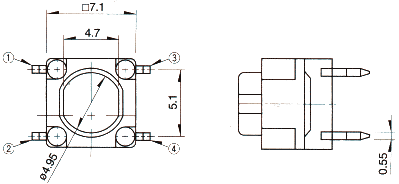

| Horizontal type
Unit : mm |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
| Switch
feeling |
 |
Tact Switch
