ALPS Electric co., LTD.
Tact Switch

SKQE
Products Line
Model Operation force Travel Ratings
(max.)		 Lifetime
(5mA 5V DC)		 Initial contact resistance Stem color Variety
SKQEAA 1.568N {160gf} 0.3mm 50mA
12V DC		 100m§Ù
max.		 Dark gray Joint stem type
SKQEAC 2.548N {260gf} Red
SKQEAB 1.568N {160gf} Dark gray Flat stem type
SKQEAD 2.548N {260gf} Red
Dimensions

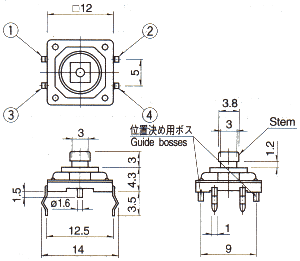

Joint stem type Unit : mm
Flat stem type Unit : mm

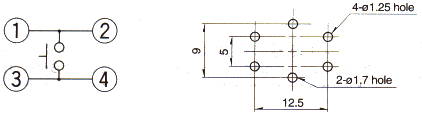

Common Specifications Unit : mm

¡¡
