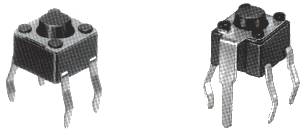

| SKHR |
 |
| Products
Line |
| Vertical type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
| SKHRAA |
0.98N
{100gf} |
0.25mm |
50mA
12V DC |
 |
100m§Ù
max. |
Black |
| SKHRAB |
1.568N
{160gf} |
 |
Dark
gray |
| SKHRAH |
2.548N
{260gf} |
|
Red |
|
| With ground terminal type |
| Model |
Operating
force |
Travel |
Ratings(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
| SKHRPA |
0.9N {100gf} |
0.25mm |
50mA 12V DC |
|
100m§Ù max. |
Black |
| SKHRPB |
1.568N
{160gf} |
|
Dark gray |
| SKHRPC |
2.548N
{260gf} |
Red |
|
| Dimensions |
| Vertical type |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
| With ground terminal type |
 |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
Tact Switch
