U5708BC

SPECIFICATION

Dimension Diameter 57mm / Thickness 11.3mm.
Impedance. 8§Ù¡¾10% at 1.0V 1 KHz.
Output S.P.L. 86 dB/W (1m) ¡¾ 3 dB at 0.8, 1.0, 1.2, 1.5 KHz. (Average figures).
Resonant frequency. 450 Hz ¡¾ 20%  at 1.0 V.
Effective frequency band. Fo ~ 4KHz.
Power. Nor. 0.3 W. / Max. 0.5 W.
Distortion. Less than 5% at 1. KHz 0.3 W.
Magnet. 12.5mm ¡¿ 1.5mm. (Nd-Fe-B)
Flux density. 6,600 Gauss (SURFACE).
Weight. 18g ¡¾ 1.0g.
Polarity. The left hand terminal should be MINUS(-).
Terminal strength. 1.0 Kg for 30 sec.
Operation test. Must be normal with program source 0.3 W.
Buzz & rattle, etc. Not be audible at 1.55  V, sine wave, Fo ~ 4 KHz.
Load test. (White) noise 0.3 W, 96 Hrs.
High temperature test. +60¡É ¡¾ 3 ¡É 96 Hrs.
Low temperature test. -20¡É ¡¾ 3 ¡É 96 Hrs.
Operating temp. range. High + 60¡É ¡¾ 3¡É Low -20¡É ¡¾ 3¡É
Humidity test. +40¡É ¡¾ 3¡É 95% 96 Hrs.

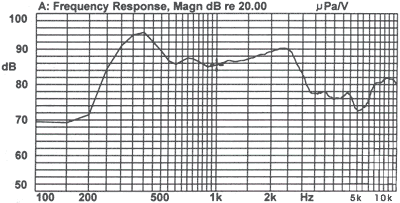

FREQUENCY CURVE.

X : 1.0000kHz    Y : 85.54dB     ZA : Live Curve

Graph, XY Axes A Grid : Fine X Axis : Log
X Range : 2dec X Min : 200.0Hz Y Axis : dB
Y Range : 50.00dB Y Max : 100.0dB Y Unit : Pa/V
dB Ref : 20.0 Pa/V Axis Ratio : Standard Page 1, Graph
DIMENSIONS
