--POTENTIOMETERS
Slide Volume

1. OPERATING TEMPERATURE RANGE

2. ELECTRICAL SPECIFICATIONS

   2-1 Total Resistance & Tolerance : 100 Rohms 20%
   2-2 Resistance Taper                   : B Curve
   2-3 Power Rating                          : B Taper : 0.03W
                                                          Other than B Taper : 0.015W
   2-4 Max. Operating Voltage           : 100V AC
   2-5 Residual Resistance               : Terminal 1-2 : Less than 10 ohms
                                                         : Terminal 2-3 : Less than 10 ohms
   2-6 Sliding Noise                           : 100mV max.
   2-7 Insulation Resistance              : 50M ohms min. at 100V DC.
   2-8 Withstanding Voltage               : 1 minute at 100V AC

3. MECHANICAL SPECIFICATIONS

   3-1 Total Travel                             : 10mm0.5mm
   3-2 Operating Force                      : 20 to 200gf cm
   3-3 Lever Stop Strength                 : 5kgf max.
   3-4 Lever Wobble                          : 2xL/25 (L : Lever Length)
   3-5 Lever Push-Pull Strength        : 2.5kgf
   3-6 Solder Heat Temperature        : 260C 5C
   3-7 Terminal Strength                    : 500gf cm min.

4. LIFE : After conducting 5,000 cycles of test (6-10 cycles/minute)
                       Criterion : (1) Variation in Total Resistance : =15%
                                       (2) Sliding Noise : 150mV max.

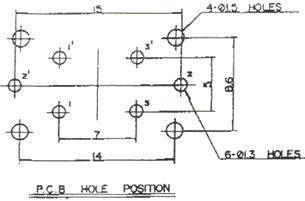

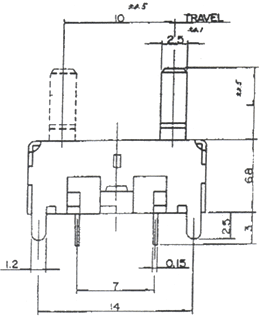

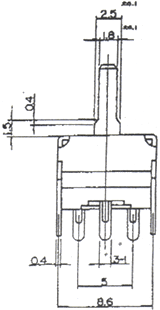

Dimensions
