Rotary Volume

24mm Volume

1. ELECTRICAL SPECIFICATION
1 TOTAL RESISTANCE TERMINAL 1-3 K§Ù ¡¾20%
2 RESISTANCE TAPER ¡¡ CURVE
3 RATED WATTAGE TEMPERATURE (0~50¡É) 0.5W
4 MAXIMUM OPERATING VOLTAGE ¡¡ DC 500V
5 INSULATION RESISTANCE ¡¡ MORE THAN 100M§Ù 500V (DC)
6 WITHSTAND VOLTAGE ¡¡ 500V AC (rem) 1 MINUTE
7 SLIDE NOISE ¡¡ LESS THAN 47 mV
8 TAP RESISTANCE TERMINAL 1-4 §Ù ¡¾ %
9 TAP RESIDUAL RESISTANCE TERMINAL 4 LESS THAN §Ù
10 RESIDUAL RESISTANCE TERMINAL 1-2 LESS THAN 10 §Ù
TERMINAL 2-3 LESS THAN 10 §Ù
11 TRACKING ERROR ¡¡ ¡¾ dB
12 SWITCH CONTACT RESISTANCE

m§Ù

 LESS THAN M §Ù
13 SWITCH RATING ¡¡ V A
2. MECHANICAL SPECIFICATION
1 TOTAL ROTATION ANGEL degree 300¢ª ¡¾ 5¢ª
2 ROTATIONAL TORQUE SPEED 60deg/sec 30 ~ 200 g . Cm
3 CLICK POSITION ¡¡ ¡¡
4 CLICK TORQUE g. Cm TORQUE+ ~ g . Cm
5 NUT WRING STRENGTH TWISTING MOMENT LESS THAN 6 kg . Cm
6 TERMINAL STRENGTH g. Cm MORE THAN 500 g . Cm
SOLDERING HEAT
300¡É¡¾5¡É/3sec		 MORE THAN 200 g . Cm
7 SHAFT (LEVER) STOP STRENGTH Kg. Cm MORE THAN 9 kg . Cm
8 SHAFT (LEVER) WOBBLE mm WITHIN 0.25L/30 L: SHAFT
                              LENGTH
9 SHAFT (LEVER) STRENGTH PULL/PUSH kg MORE THAN 15/10Kg .
10 TOTAL OPERATING STROKE mm   mm.
11 SLIDING FORCE SPEED 20 mm/sec   g.
12 SCREW TIGHTENING FORCE TORSIONAL MOMENT MORE THAN kg . Cm
13 SWITCH TYPE, CIRCUIT ¡¡ ¡¡
14 SWITCH OPERATING ANGLE (STROKE) degree (mm) ¡¡
15 SWITCH OPERATING TORQUE (FORCE) g. Cm ~ gf . Cm
3. USABLE TEMPERATURE RANGE : FORM -10 ¡É TO 70¡É

4. LIFE : 15000¡¾200CYCLES RESISTANCE CHANGE WITHIN ¡¾ 15%
                                                    SLIDE NOISE LESS THAN 82 mv
                      ¡¾ CYCLES S/Q CONTACT RESISTANCE THAN     m §Ù

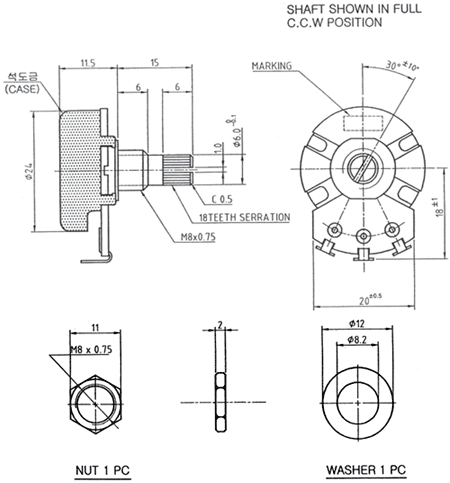

DIMENSIONS
