ALPS Electric co., LTD.
Potentiometers

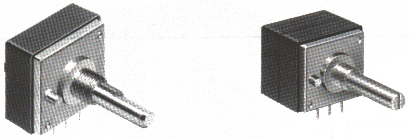

Rotary Potentiometer (27¥ÕVR)
Products line
Type
Model
Mounting height (mm)
Detent variety
Gang error
Single-shaft, single-unit
RK27111
12.5
Center detent
11
21
31
41
-60dB~0dB
3dB
-80dB~-60dB
5dB
-60dB to 0dB
within 3dB
Depending on resistance and taper,
-80dB to -60dB
within 5dB
Possible
Single-shaft, dual-unit
RK27112
Single-shaft, quad.-unit
RK27114
Standard dimensions of bushing and fixing lug Unit : mm
Type
Applications
Single-shaft
Dual-shaft
27mm size RK27
Bushing
M8¡¿0.75 M9¡¿0.75
M9¡¿0.75
Locating
lug
Model
Dimensions
Single-shaft, single-unit

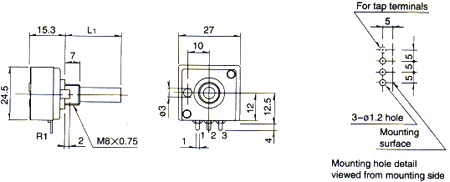

RK27111

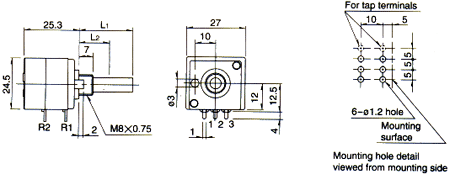

Single-shaft, dual-unit RK27112

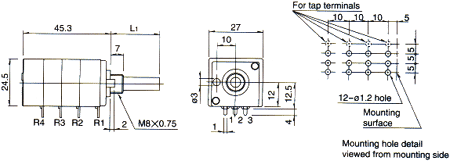

Single-shaft, quad.-unit RK27114
