ALPS Electric co., LTD.
Potentiometers

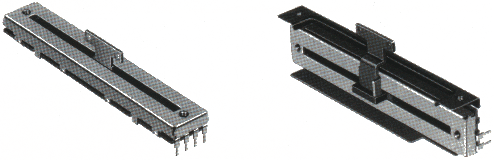

Slide Potentiometer (60mm~100mm)
Products Line
Type Travel Model Tap Center detent Terminal Lever style
Single-unit 60mm RS60N11

¡Ü

 Not available For printed wiring For lead wiring 1,4,9-2
(8.2§¤)available
9-2 Horizontal type Only
9-2available
100mm RSA0N11
Dual-unit 60mm RS60N12
100mm RSA0N12
Type of Lever
Configuration code 1 4 9-2
Dimensions ¡¡
Maximum attenuation level/Insertion loss
Total resistance (k§Ù) Maximum attenuation level (dB) Insertion loss (dB)
B Except B
10 70min. 110 0.1max.
50 80min.
100 90min.
250 100min.
Terminal style
Dimensions and P.C. Board mounting hole details
(Viewed from the mounting side)                                                              Unit : mm

Standard type

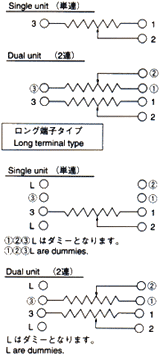

Circuit diagram
Horizontal type




Circuit diagram

Long terminal type
