ALPS Electric co., LTD.
Chip Trimmer Potentiometer

2mm size (2mm~3mm Semi VR)
No. Model Dimensions

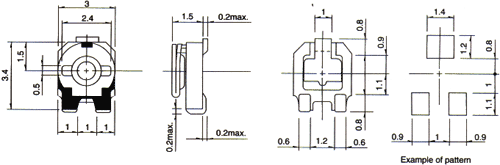

1 RH02AXC
For automatic adjustment




Minimum packing unit 2000pcs.
3mm size
No. Model Dimensions

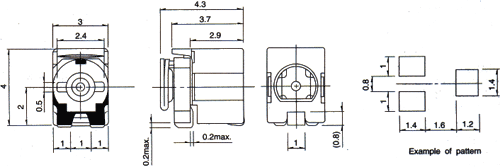

2 RH03A3A
For automatic adjustment


Minimum packing unit 2000pcs.

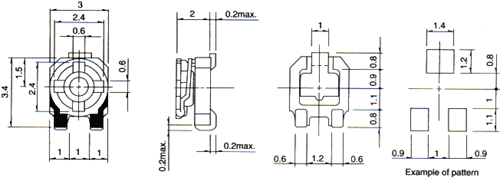

3 RH03A3C
For automatic adjustment

Minimum packing unit 2000pcs.

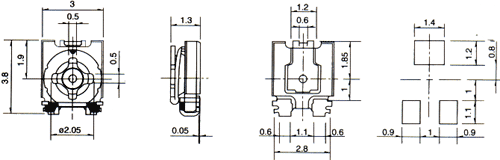

4 RH03ADC
For automatic adjustment with stopper


Minimum packing unit 2000pcs.

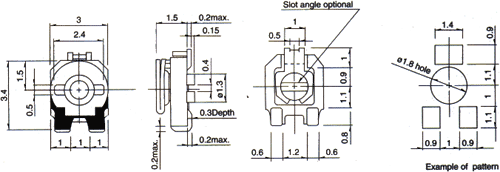

5 RH03AXA
For flow soldering


Minimum packing unit 2000pcs.

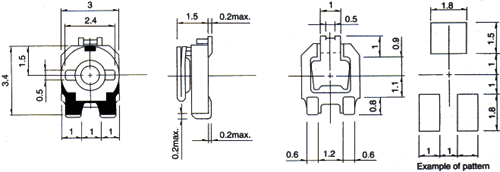

6 RH03APA
For top/back adjustment


Minimum packing unit 2000pcs.
7 RH03AVA
For side adjustment


Minimum packing unit 2000pcs.
8 RH03E1C
Carbon film


Minimum packing unit 2000pcs.
